30 Feet Freezer Container | Customized Mobile Cold Storage Cell Container (Reefer)

Designed for reliable temperature-controlled storage, this 30-foot freezer container offers a mobile solution for businesses requiring flexible cold storage capacity. Manufactured from high-grade COR-TEN steel, this refrigerated container (reefer) is constructed to maintain consistent internal temperatures for a variety of goods. It is suitable for both long-term stationary use and transport via standard intermodal methods.

Key Features

Durable Construction: Built with weathering COR-TEN steel to withstand varied environmental conditions across the United States.

Precise Temperature Control: Equipped with an integrated refrigeration unit capable of maintaining a consistent temperature range suitable for frozen goods.

Customizable Configuration: This mobile cold storage cell container can be modified to include features such as shelving, data loggers, or additional interior lighting based on specific operational needs.

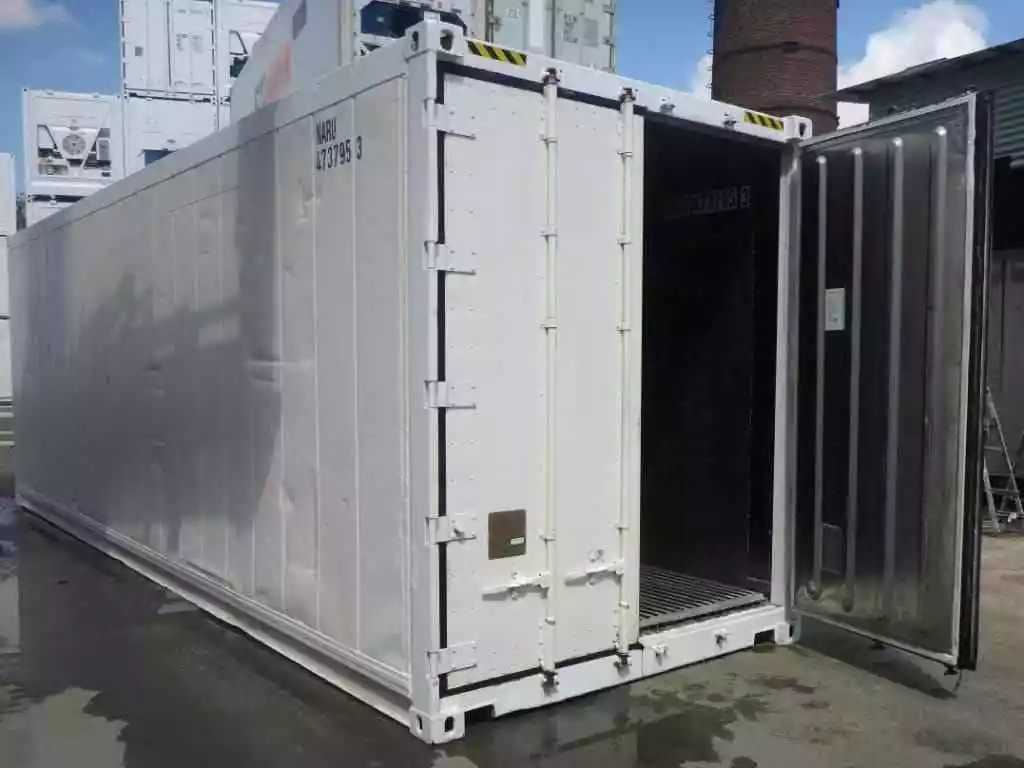

Secure Storage: Features lockable, weather-sealed double doors at one end to ensure the security and integrity of stored products.

Intermodal Compatibility: Standard corner castings allow for easy lifting, stacking, and transport by truck, rail, or ship.

Detailed Description

This 30-foot freezer container provides a self-contained environment for cold storage needs, acting as an extension of your existing cold chain infrastructure. Its primary function is to offer a portable and secure space where temperatures are actively managed by the integrated reefer unit.

The unit is engineered to operate effectively in a range of ambient conditions, ensuring that interior temperatures remain stable regardless of the external climate. The structure itself is constructed from durable materials, offering a high degree of resistance to corrosion and physical impact.

It is insulated with polyurethane foam, which is contained within the walls, floor, and ceiling to minimize thermal exchange. As a result, the unit operates efficiently, reducing the workload on the refrigeration system.

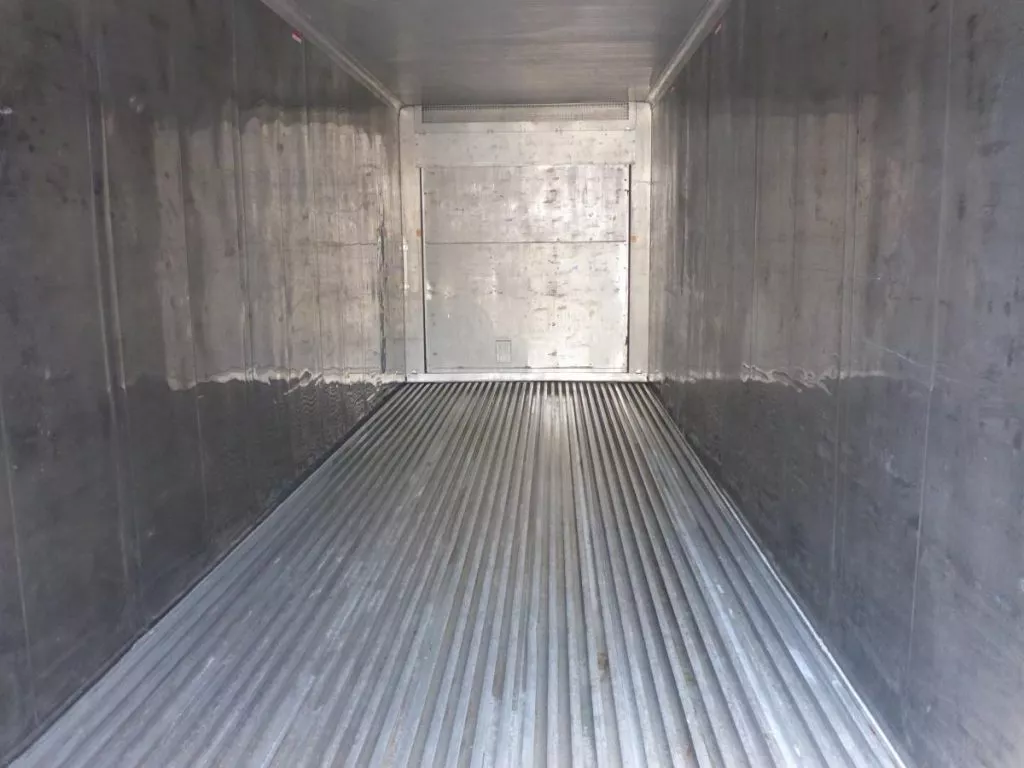

Furthermore, the flooring is typically constructed with a T-bar design, allowing for airflow beneath the stored goods and facilitating cleaning.

Given that it is a 30-foot variant, it represents a mid-size option, balancing storage capacity with a smaller footprint compared to a standard 40-foot unit. It can be positioned at a construction site, a catering event, or a distribution center.

Modifications are frequently requested to tailor the container to specific uses. For instance, some operators request internal partitions to separate frozen items, while others require additional ventilation or power outlets for monitoring equipment.

This container is delivered as a ready-to-use unit, requiring only connection to an appropriate power source to begin operation.

Technical Specifications

External Dimensions (L x W x H): Approx. 29′ 11″ x 8′ 0″ x 8′ 6″ (9.12m x 2.44m x 2.59m)

Internal Dimensions (L x W x H): Approx. 28′ 10″ x 7′ 5″ x 7′ 6″ (8.78m x 2.26m x 2.28m)

Door Opening (W x H): Approx. 7′ 5″ x 7′ 5″ (2.26m x 2.26m)

Internal Volume: Approx. 1,600 Cubic Feet (45.3 Cubic Meters)

Maximum Gross Weight: 67,200 lbs (30,480 kg)

Tare Weight: Approx. 8,820 lbs (4,000 kg)

Insulation Thickness: Walls/Floor/Roof: 4″ to 5″ (100mm to 127mm) Polyurethane Foam

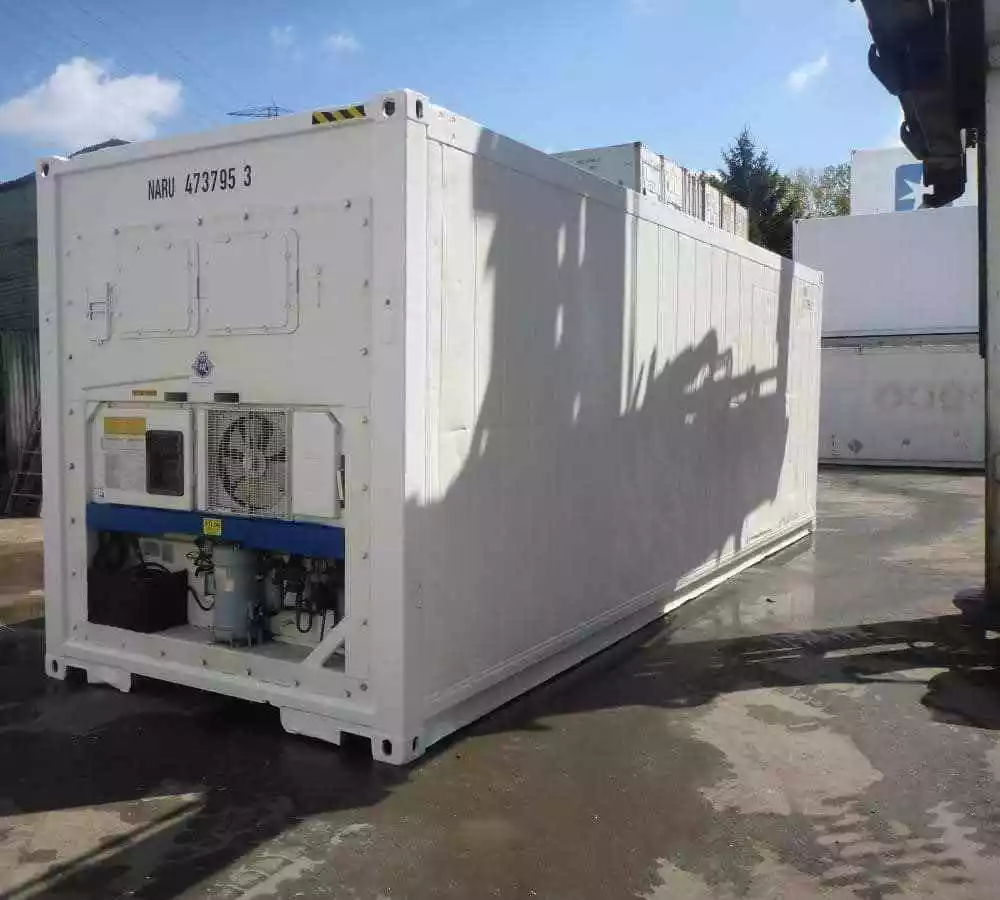

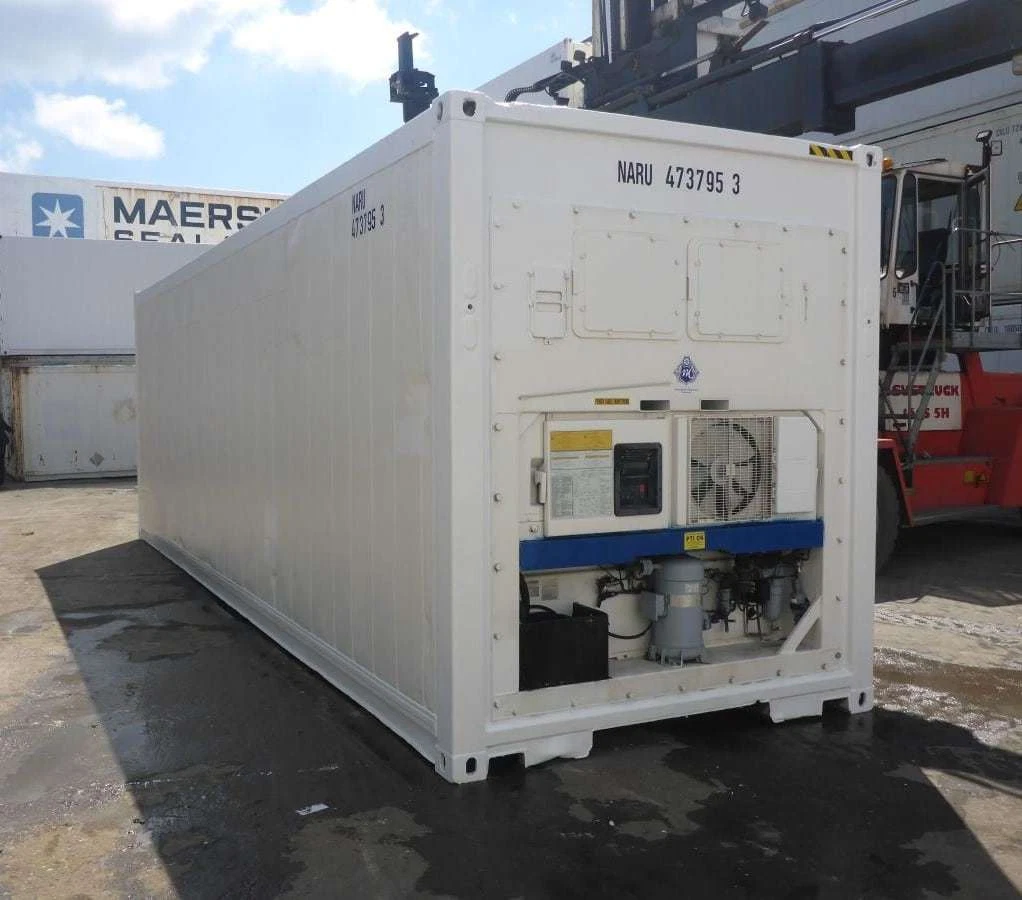

Refrigeration Unit: Carrier Transicold / Thermo King (or equivalent integrated unit)

Temperature Range: Configurable between -20°F and 40°F (-29°C to 4°C)

Power Requirements: 400V / 50Hz or 480V / 60Hz (3 Phase)

Material: COR-TEN Steel (Weathering Steel) Exterior, Aluminum or Galvanized Steel Interior Lining

Compatibility / Intended Use

This mobile cold storage cell container is intended for commercial and industrial applications. It is widely used by businesses in the food service, logistics, and agricultural sectors.

Common applications include:

• Temporary storage during peak seasons
• Off-site storage for caterers
• Supplemental freezer space for grocery distributors
• Storage of frozen food products and ice
• Storage of temperature-sensitive, non-hazardous materials

It is designed to store frozen food products, ice, and other temperature-sensitive, non-hazardous materials that do not require an explosive-proof environment.

Package Includes

• 1 x 30-foot refrigerated shipping container
• 1 x Integrated, factory-tested refrigeration unit
• Standard lock boxes on double-door ends
