Product Description

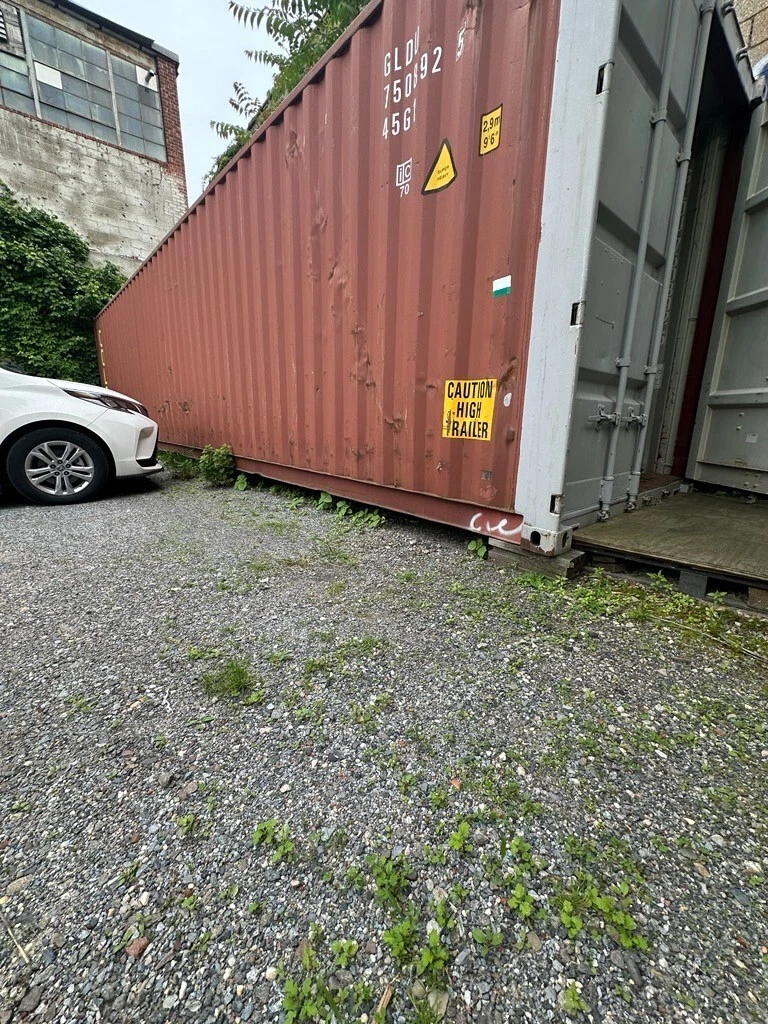

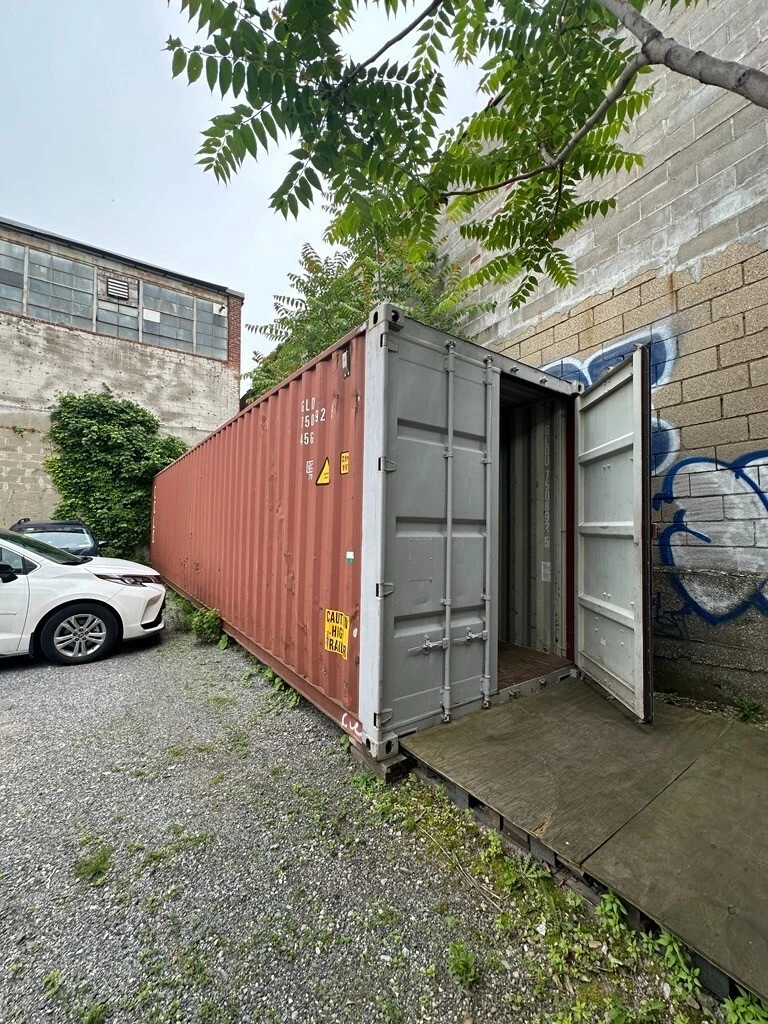

The 40ft High Cube Shipping Container is a standard intermodal freight unit designed for the transport and storage of dry goods. Its construction from corrosion-resistant steel (Corten steel) provides structural integrity and weather resistance, making it suitable for repeated use in global logistics operations.

The container is built to ISO standards, ensuring compatibility with global shipping, rail, and road transport systems.

Key Features

• Increased Vertical Clearance: Provides an internal height of 2.70 meters (8’10”), offering approximately 12% more volume compared to a standard 40ft container for bulky or tall cargo.
• Weather-Resistant Construction: Manufactured with Corten steel to withstand harsh environmental conditions during transit or outdoor storage.
• Standardized Design: Fully compliant with ISO 668 dimensions, allowing for seamless intermodal transport and secure stacking.
• Secure Cargo Management: Equipped with rear door locking mechanisms and internal lashing points to stabilize cargo during transit.

Detailed Description

This 40ft High Cube (HQ) container is distinguished from standard units by its added height, which is designed to accommodate cargo that cannot be easily loaded into a standard 8’6″ container.

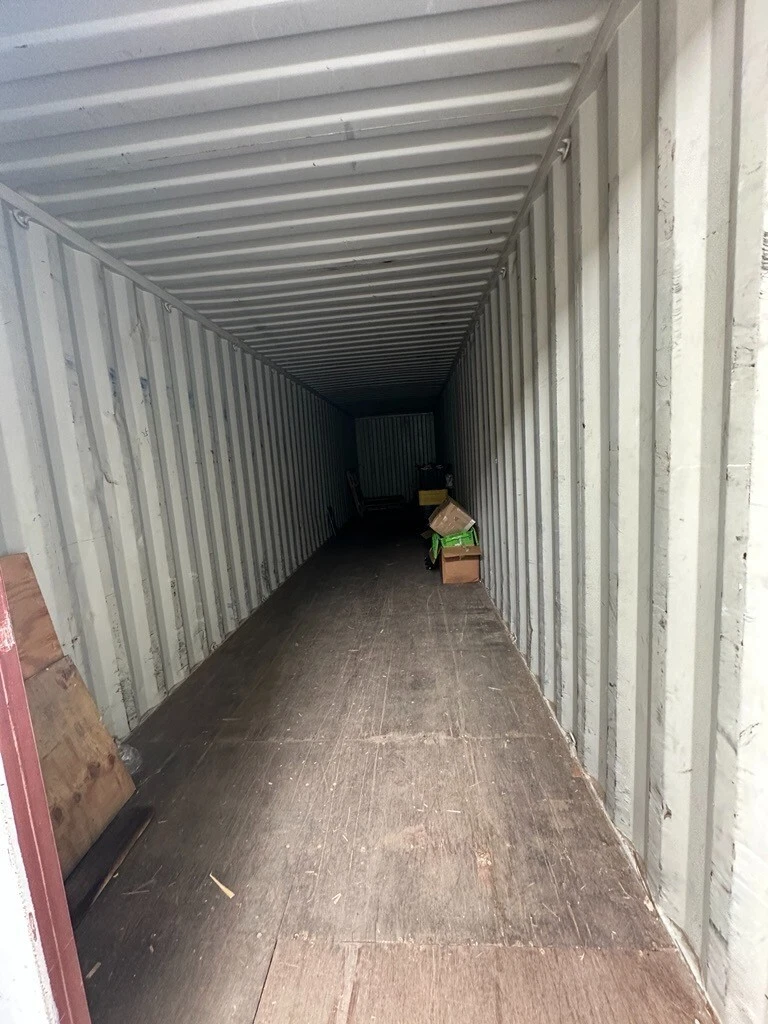

The structure is fabricated with a robust steel frame and corrugated walls for high durability. The flooring consists of marine-grade plywood, designed to support concentrated loads from forklifts and palletized goods.

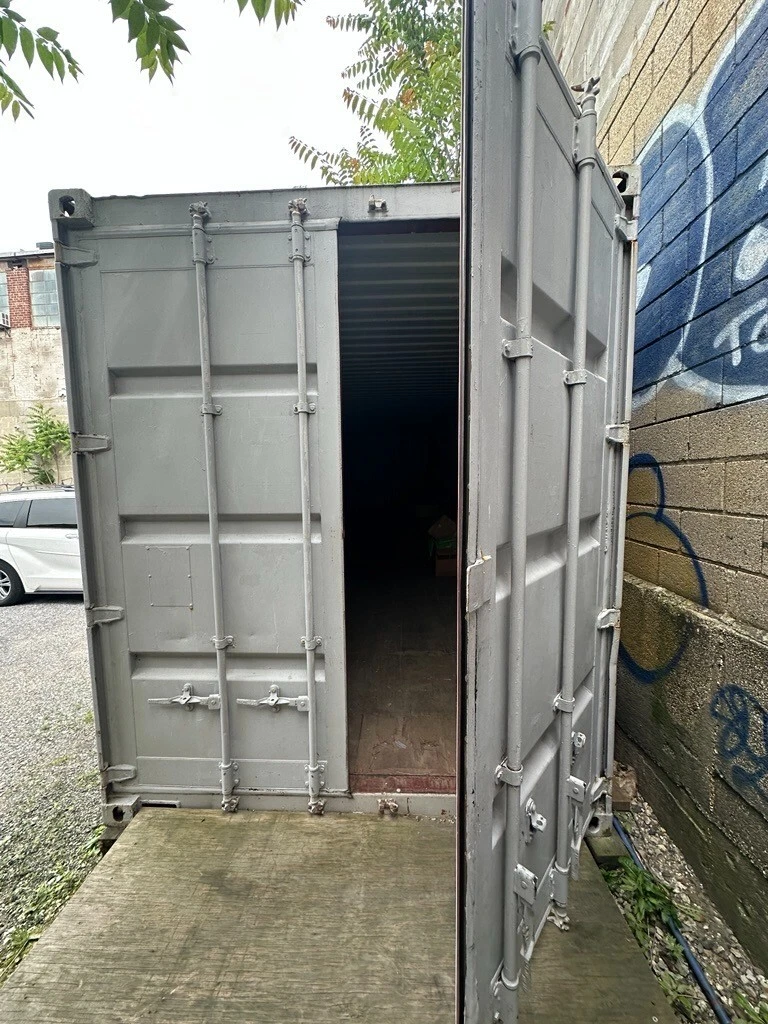

The double rear doors swing open fully to allow access for loading and unloading. While primarily used in ocean freight, this unit is also a common solution for secure on-site storage in various industrial sectors.

The container’s design facilitates efficient packing for manufacturers and distributors handling high volumes of goods. Its standardized corner castings allow for lifting by gantry cranes, top loaders, and hooklifts, ensuring efficient handling at ports and distribution centers.

Technical Specifications

External Dimensions

• Length: 40 ft (12.19 m)
• Width: 8 ft (2.44 m)
• Height: 9 ft 6 in (2.89 m)

Internal Dimensions

• Length: 39 ft 6 in (12.03 m)
• Width: 7 ft 9 in (2.35 m)
• Height: 8 ft 10 in (2.70 m)

Door Opening

• Width: 7 ft 8 in (2.34 m)
• Height: 8 ft 5 in (2.58 m)

Capacity & Weight Limits

• Internal Cubic Capacity: 76.4 m³ (2,696 ft³)
• Maximum Gross Weight: 30,480 kg (67,200 lbs)
• Tare Weight: Approximately 3,940 kg (8,690 lbs)
• Maximum Payload: Approximately 26,330 kg (58,050 lbs)

Intended Use

This container type is intended for the transport and storage of dry, non-perishable goods. It is commonly utilized in the following sectors:

• Logistics and Shipping: For consolidating palletized cargo, retail goods, and raw materials in ocean and rail freight.
• Manufacturing: For storing components or finished products, particularly those requiring vertical space such as machinery parts or furniture.
• Retail and Warehousing: As supplemental storage for e-commerce inventory, textiles, and bulk consumer goods.
• Industrial Storage: For secure on-site storage of equipment and materials at construction or production sites.
