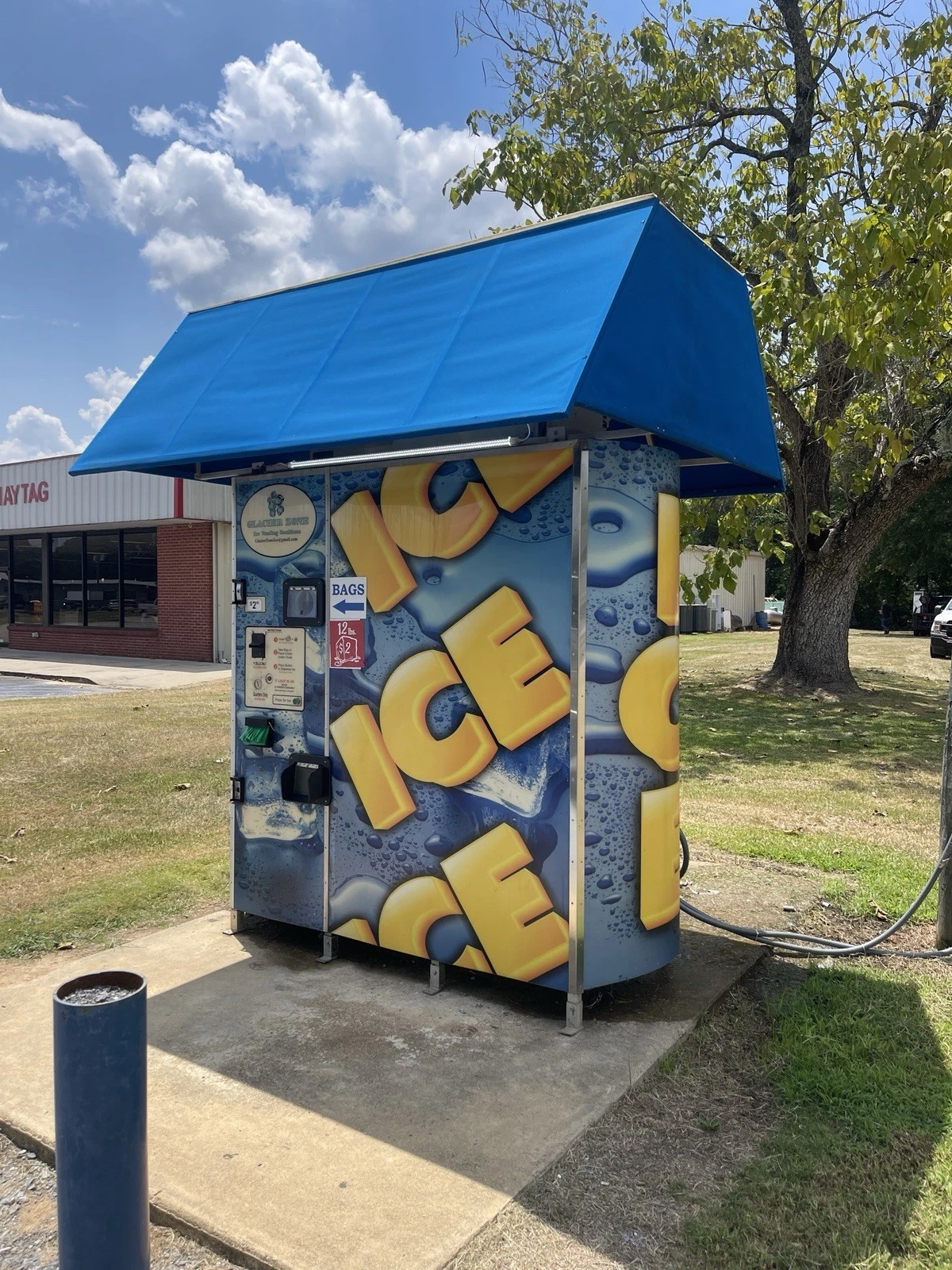

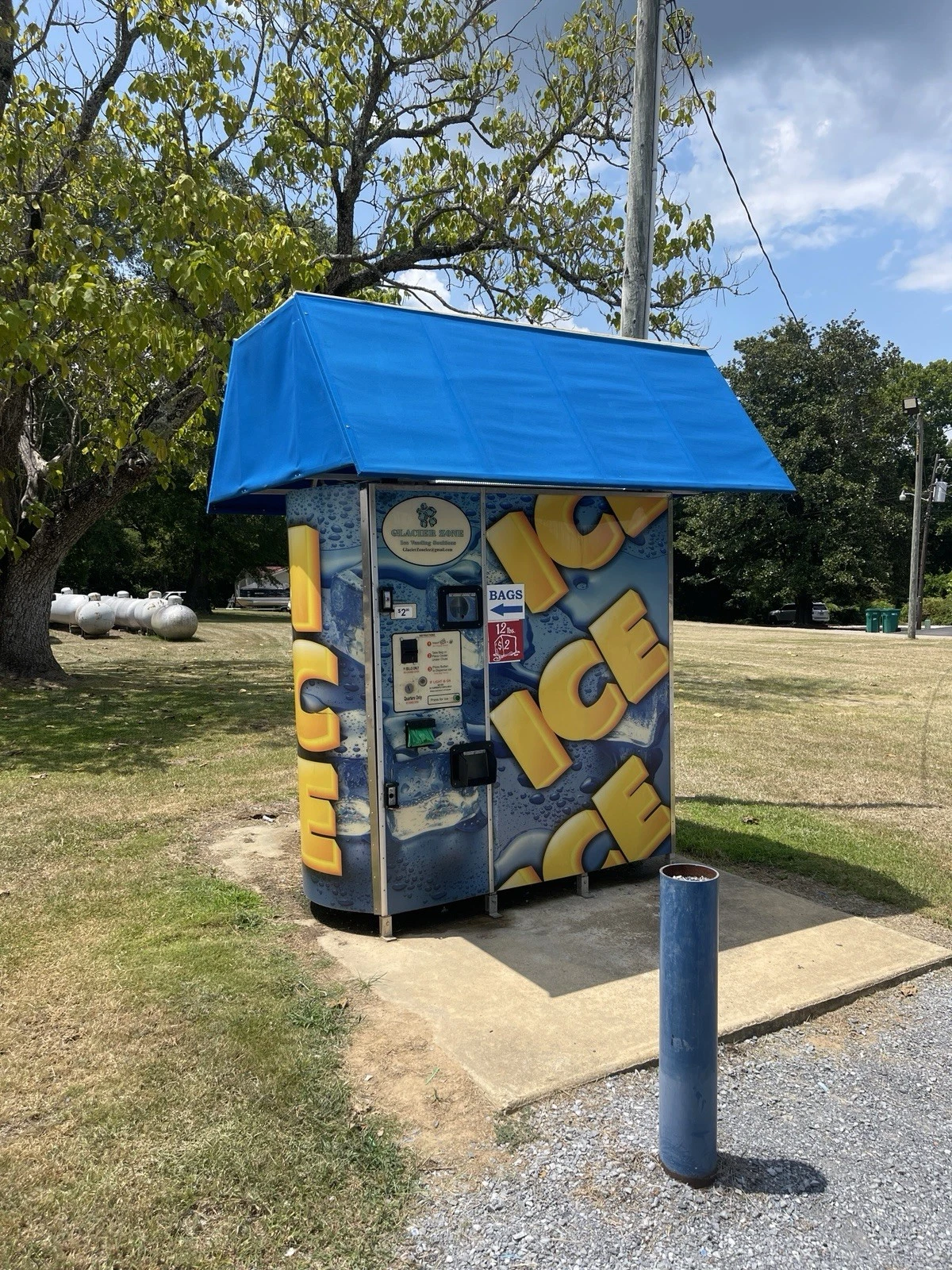

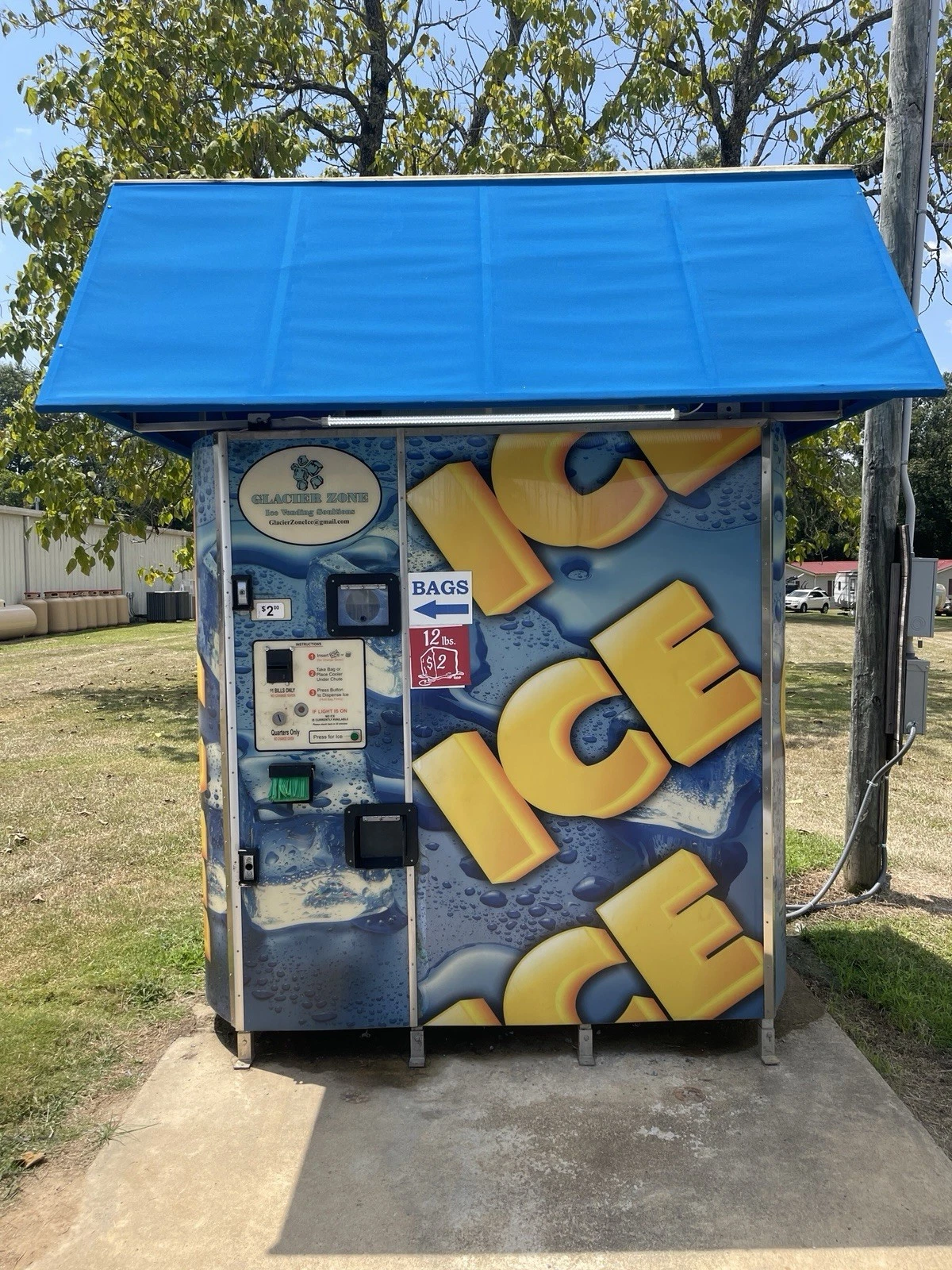

Ice Depot – Commercial Ice Vending Machine (High Capacity)

Product Overview

The Ice Depot is a commercial-grade ice vending machine engineered for high-volume production and automated dispensing. This self-contained unit is designed for placement in retail locations, fuel stations, campgrounds, and self-service facilities where reliable ice access is required.

Constructed with food-grade materials throughout, the machine integrates ice production, storage, bagging, and payment processing into a single enclosure.

Key Features

• High Daily Production Capacity: Generates up to 450 kilograms (approximately 992 pounds) of ice per 24-hour cycle.
• Dual Dispensing Options: Provides both bagged ice and bulk ice retrieval through separate chutes.
• Multi-Denomination Payment System: Accepts bills, coins, and IC cards with change return functionality.
• Five-Stage Reverse Osmosis Filtration: Processes inlet water through sediment, activated carbon, and RO membrane stages.
• Food-Grade Stainless Steel Construction: Grade 304 stainless steel is used for all surfaces contacting ice or water.
• Automated Bagging Mechanism: Performs bag dispensing, weighing, filling, and sealing without operator intervention.
• Remote Monitoring Capability: Allows GSM-based reporting and system controls.
• Automatic Safety Shutoffs: Engage when water supply is low, ice storage is full, or bags are depleted.

Detailed Description

The Ice Depot functions as a fully integrated ice production and vending system. Water entering the unit passes through a multistage purification process before reaching the ice maker.

The ice formation chamber produces uniform 22×22×22 millimeter cube ice, which is transferred to an insulated storage bin. An internal auger system moves ice from storage to the dispensing mechanism as needed.

When a customer initiates a purchase, the payment system validates currency and signals the control board to begin dispensing.

For bagged ice orders, the machine automatically positions an empty bag, fills it to the programmed weight, and heat-seals the bag before delivery to the customer. Bulk ice is dispensed directly through a separate chute into the customer’s container.

The cabinet features a front-door design that provides access to internal components for maintenance. A waterproof powder-coated steel exterior protects internal mechanisms from weather exposure when installed outdoors.

The control system continuously monitors ice levels, water input, bag supply, and payment processing to maintain operational status.

Technical Specifications

Filtration System Specifications

The integrated water purification system includes sequential filtration stages:

• Stage 1: 10-inch, 5-micron precision sediment filter
• Stage 2: 10-inch bulk activated carbon filter
• Stage 3: 10-inch sintered activated carbon filter
• Stage 4: Reverse osmosis membrane (200 GPD / 750 liters per 24-hour capacity, optional upgrade)
• Stage 5: Post-activated carbon final polishing filter

All filtration components meet NSF standards for drinking water treatment.

Intended Use Applications

The Ice Depot is intended for commercial installation in the following settings:

• Self-service retail locations requiring unattended ice sales
• Fuel stations and travel centers
• Campgrounds and RV parks
• Marinas and boat launch facilities
• Grocery store parking lots
• Multi-unit residential developments with shared amenities

The unit operates continuously in outdoor or indoor environments and requires access to electrical service and potable water supply.

Regular maintenance access is necessary for filter changes, sanitation procedures, and mechanical servicing.

Package Includes

• Ice Depot JM450 commercial vending machine unit
• Integrated multistage water filtration system
• Bill and coin validator with change return mechanism
• IC card reader (factory-installed)
• Automated bagging mechanism with heat sealer
• GSM remote monitoring module
• Installation and operation manual
• Starter supply of vending bags
