Triple Toilet Unit (Customizable) – Shipping Container

Product Overview

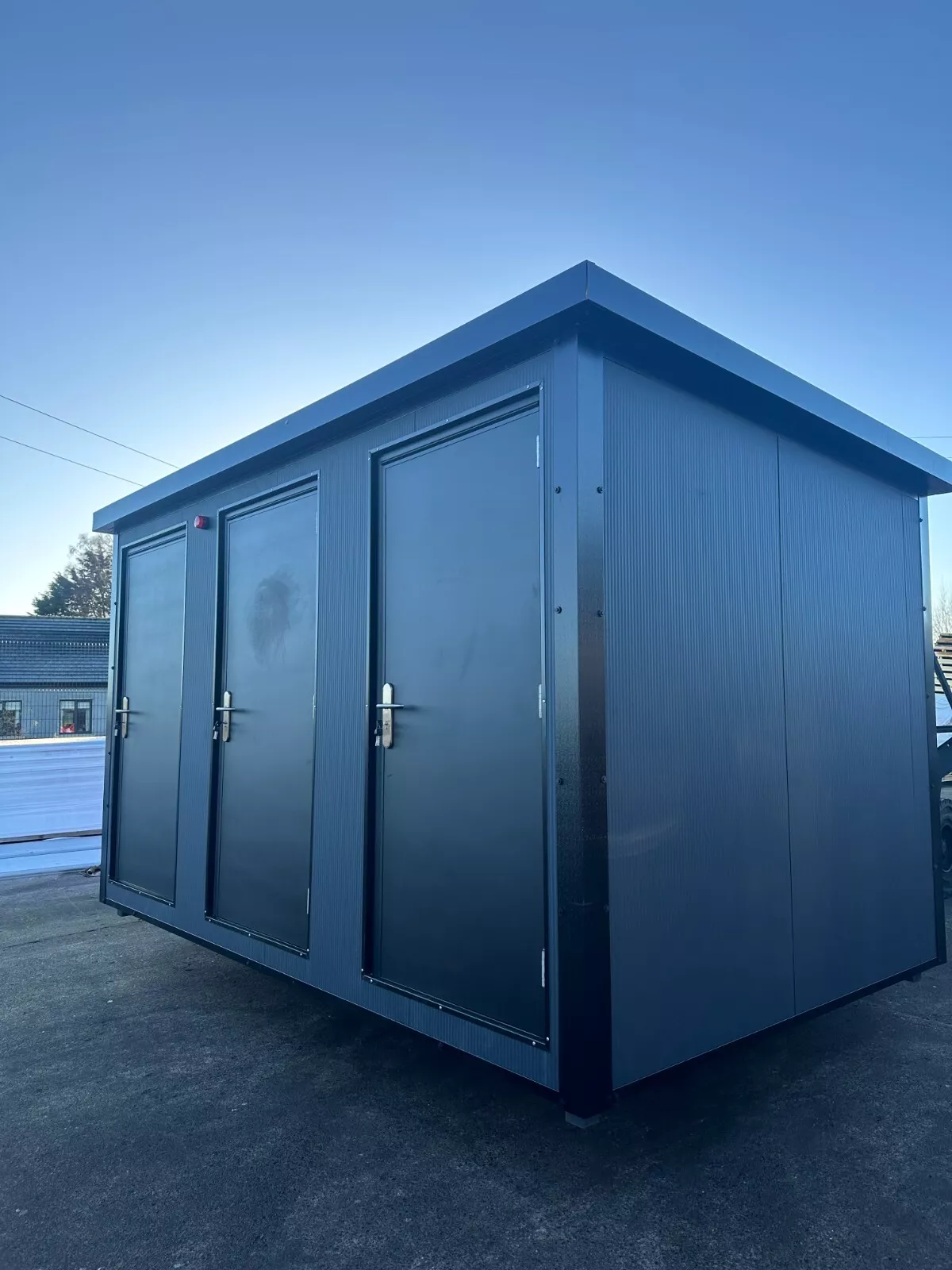

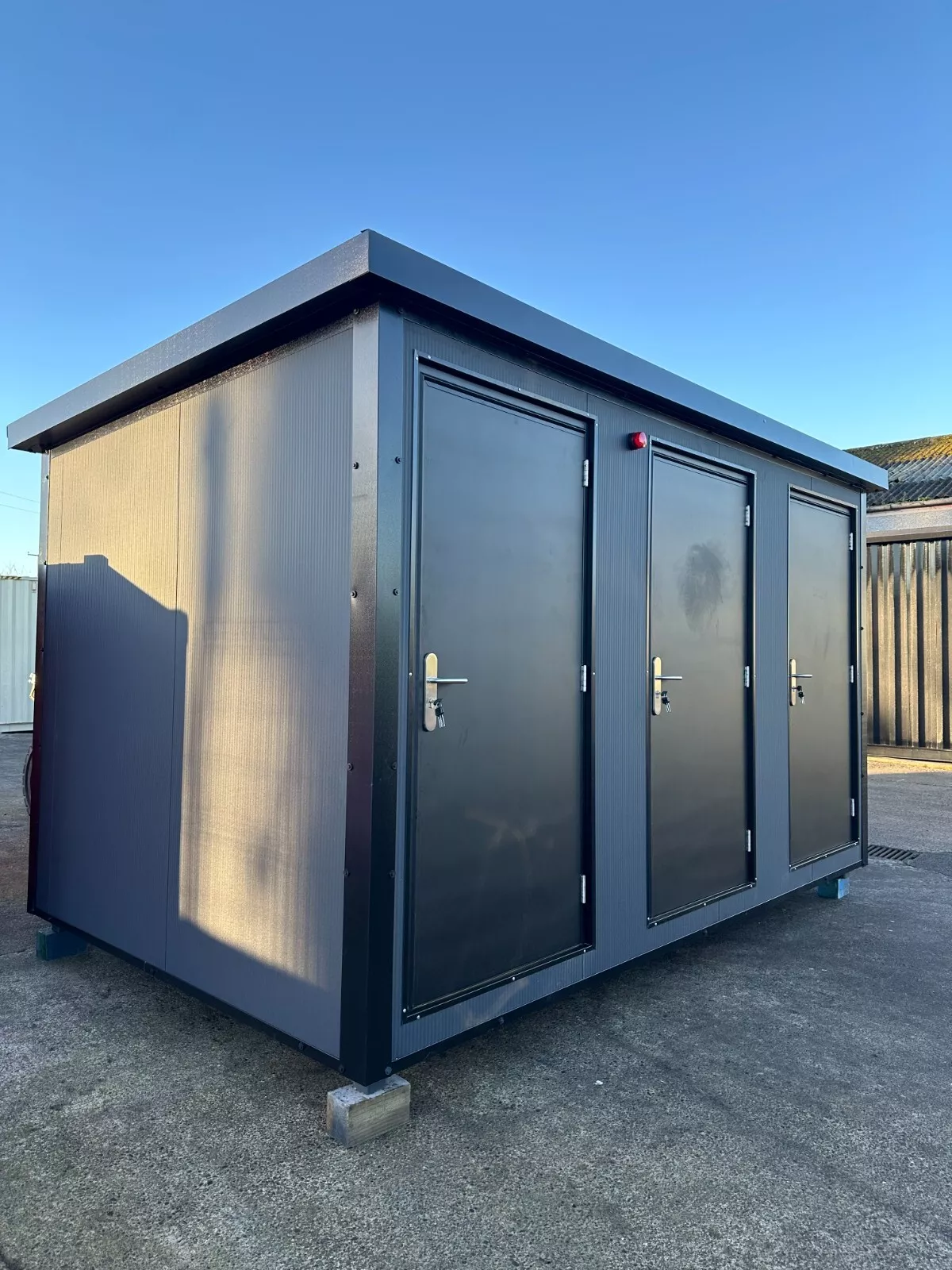

This Triple Toilet Unit is a self-contained sanitation facility constructed within a modified shipping container framework. Designed for deployment in locations requiring permanent or temporary restroom infrastructure, this unit provides three separate toilet compartments within a single, secure structure.

The containerized construction facilitates straightforward transportation and installation across various site conditions.

Key Features

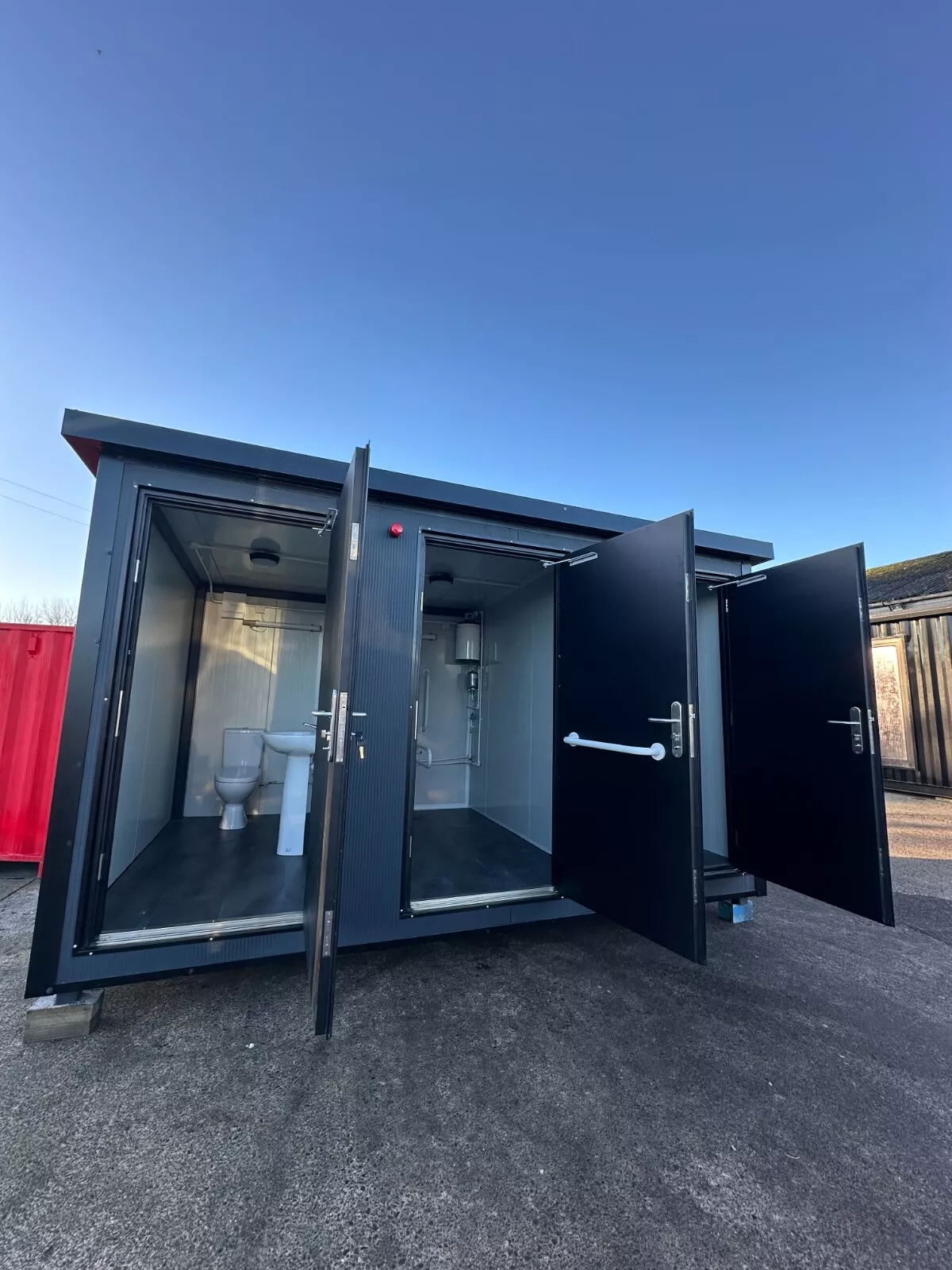

• Three Compartment Configuration: Individual private toilet rooms, each enclosed for user privacy and simultaneous access.
• Customizable Layout Options: Interior partitions and fixture placement can be modified according to project specifications.
• Shipping Container Construction: Steel frame structure with corrugated wall panels for durability and security.
• Integrated Plumbing System: Pre-installed fresh water supply lines and waste discharge connections.
• Ventilation Infrastructure: Passive or mechanical ventilation provisions integrated into wall or roof panels.
• Lockable Entry Doors: Each compartment equipped with privacy locks from the interior.
• Weather-Resistant Exterior: Galvanized steel exterior cladding with corrosion-resistant coating.

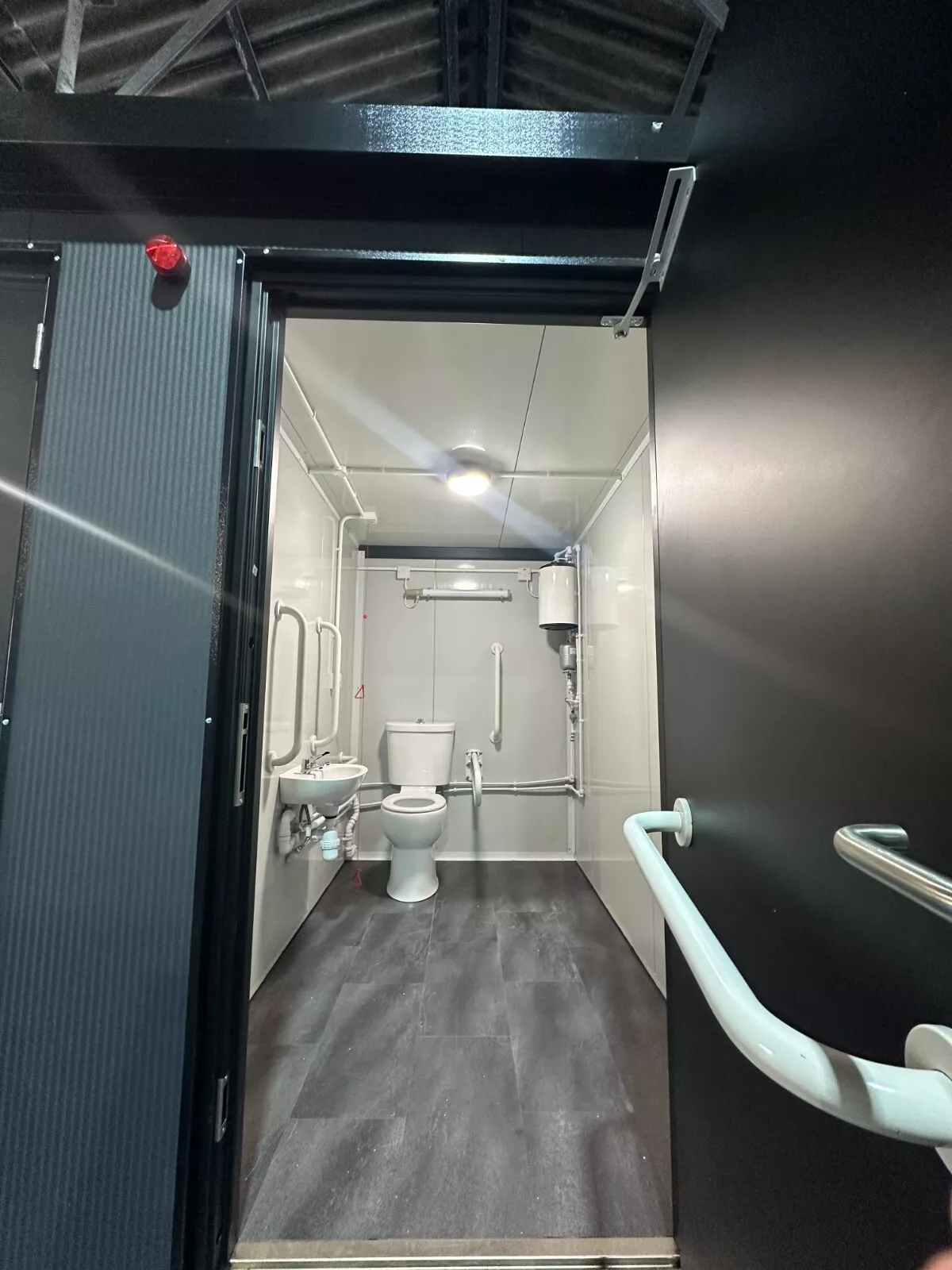

• Accessibility-Ready Design: Dimensions can accommodate ADA-compliant configurations upon request.

Detailed Description

This Triple Toilet Unit repurposes a standard shipping container structure into a functional, multi-stall sanitation facility. The unit is fabricated using cold-rolled steel profiles forming the frame, with corrugated galvanized steel sheet cladding for the exterior walls.

The steel structure provides inherent security and resistance to vandalism, making the unit suitable for unsupervised locations.

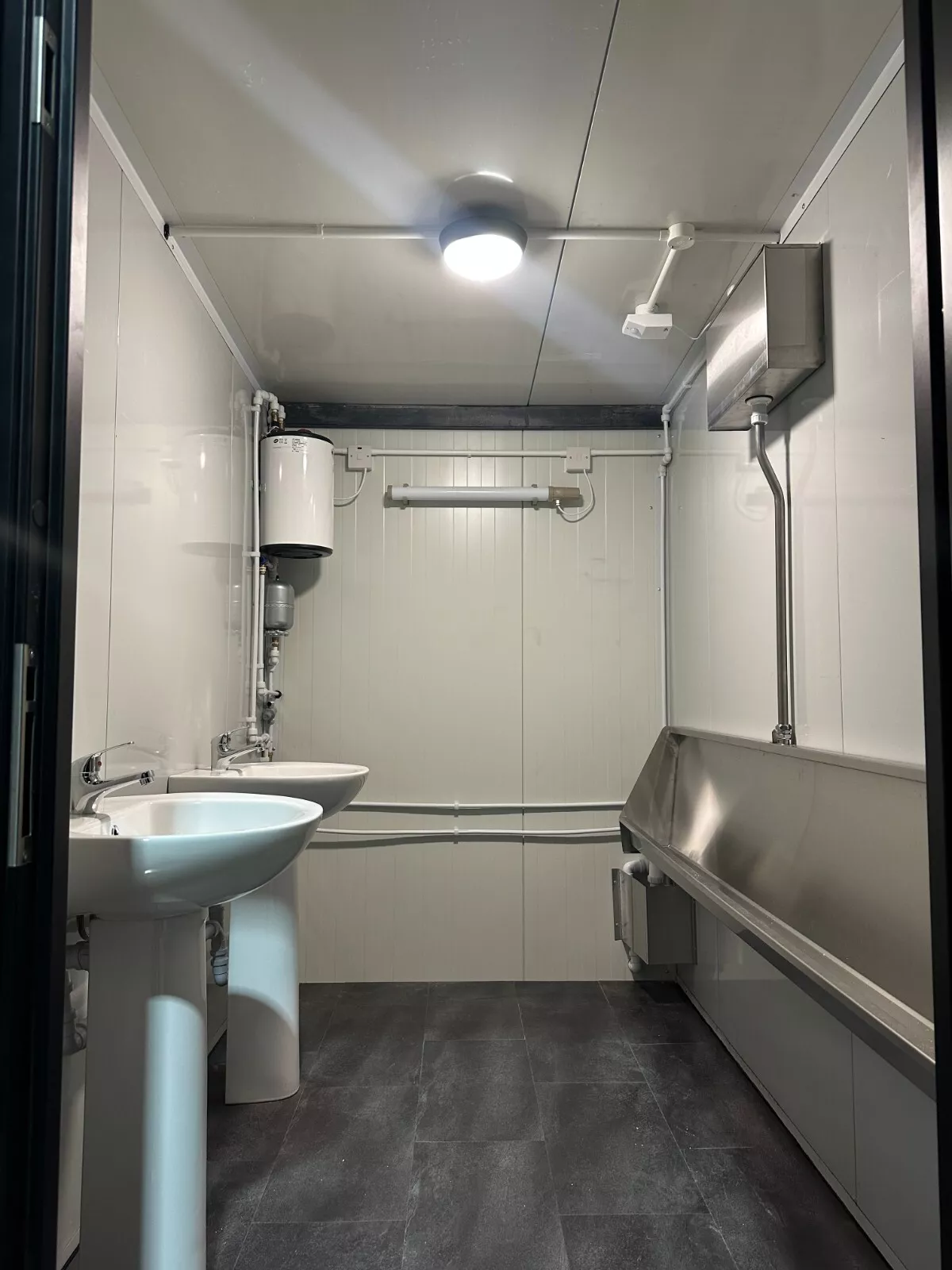

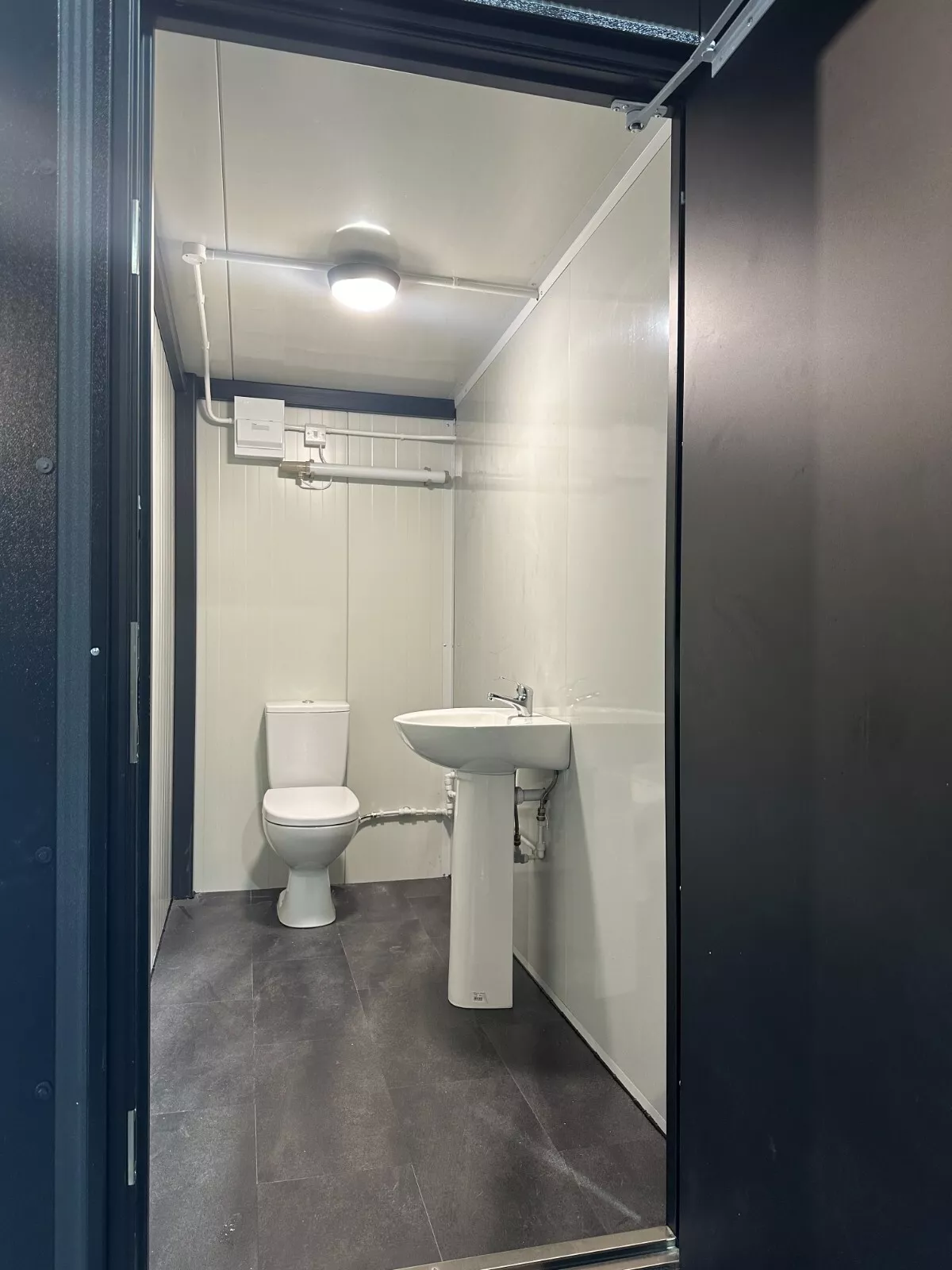

The interior is divided into three distinct compartments, each containing a toilet fixture. Partitions are constructed from moisture-resistant materials such as glass-magnesium board or fiber-reinforced plastic, which withstand humid conditions and facilitate cleaning.

Flooring consists of non-slip, waterproof materials with integrated drainage gradients toward waste collection points.

Plumbing rough-ins are completed during fabrication, with supply lines and waste outlets positioned for connection to external water sources and septic systems or holding tanks. The configuration allows for either direct sewer connection or operation as a self-contained unit with holding tanks, depending on site requirements.

Electrical provisions include interior lighting in each compartment and external security lighting where specified. Switchgear is housed in weatherproof enclosures.

Insulation can be incorporated into wall cavities for temperature moderation, utilizing mineral wool or closed-cell foam materials.

As a customizable product, the Triple Toilet Unit can be modified before delivery. Alterations may include repositioning of partitions, selection of interior finishes, addition of handwashing stations, or incorporation of accessible compartment dimensions. Customization is completed during the fabrication phase prior to delivery.

Technical Specifications

Intended Use Applications

The Triple Toilet Unit is suited for multiple deployment scenarios requiring durable, relocatable sanitation facilities:

• Construction Sites: Provides required sanitation access for work crews under OSHA construction sanitation standards.
• Industrial Facilities: Supplementary restroom capacity in warehouses, distribution centers, or remote operational areas.
• Event Venues: Permanent or seasonal sanitation at fairgrounds, campgrounds, or outdoor recreation sites.
• Temporary Installations: Disaster response staging areas, temporary workforce housing, or field operations.
• Infrastructure Projects: Pipeline construction, utility maintenance, or transportation projects requiring mobile facilities.
• Rural Applications: Locations where permanent sewer connections are unavailable or cost-prohibitive.

Package Includes

• One (1) Triple Toilet Unit as specified
• Three (3) ceramic toilet fixtures with flush mechanisms
• Three (3) interior compartment doors with privacy locks
• Pre-installed interior lighting in each compartment
• Exterior access panel for utility connections
• Manufacturer documentation including connection diagrams and maintenance guidelines
